包装とサステナビリティ
未知の領域へ
従来の包装では、異なる種類のプラスチックが何層にも重なっており、リサイクルの妨げになっていました。今日では、メーカーは地球のために環境に配慮した単一素材や紙などの代替品を選択することもできます。二次包装や最終包装では、紙の加工技術が確立されている一方、一次包装においては検討すべき課題が多く残されています。
圧力、温度、時間などのシーリングパラメータの調整が重要であるため、包装機械の観点では、紙化への移行は簡単ではありません。しかし、私たちはサステナブル包装のパイオニアとして、ノウハウを共有するとともに、生産効率や製品品質を損なうことなく、お客様の生産工程で環境に負荷の少ない材料による包装が可能になるようサポートします。
サステナビリティソリューション
Sustainability @Syntegon
食品包装が地球保全に役立つためには? より持続可能な世界のために、従来の包装に対する考え方を変えてみませんか。
サステナブル包装への第一歩
菓子メーカー様に、持続可能な紙ベース材による包装ソリューションを提供するため、私たちはイノベーターであるSappi Europeとパートナーシップを締結しました。シンテゴンは通常、包材に依存しないアプローチをとっていますが、将来的には当社の専門知識を組み合わせることで、お客様に大きなメリットを提供することができます。
横型ピロー包装機

紙ピロー包装

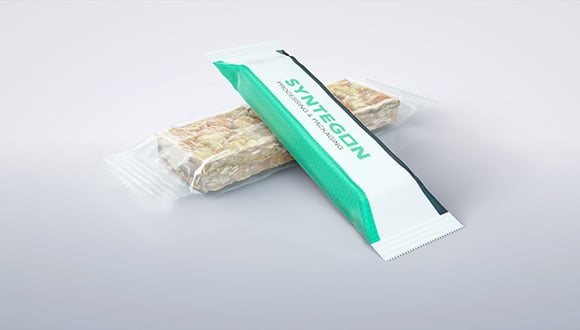

チョコレート・ベーカリー産業では、用途に応じて多くのバリアペーパーが使用されています。当社では、すでに多くのお客様の既存の機械にレトロフィットキット「paper-ON-form」を導入しています。異なる種類のバリアペーパーと従来の包装材を同じ機械で使用することができ、速やかな包材の切り替えが可能です。成形ユニットとシールジョーにより、紙の折り曲げや破れなどなく成形します。当社の専門エキスパートが、お客様の希望する包装サイズや素材の特性に合わせて、ユニットやジョーを事前に設定することが可能です。

モノマテリアルピロー包装
1種類のプラスチックで構成される単一素材フィルムは、温度感受性が高くなります。当社の横ピロー包装機では、AHS(Amplified Heat Sealing)のストロークを長くすることで、入熱を最適化し、高速処理を可能にしました。フィルムに正確に熱を加えることによって気密性の高い包装を実現しています。
ユースケースシナリオ(英語)

Paper packaging for Balisto chocolate bars
We supported Mars Wrigley with investigating the flow wrapping potential of paper.
Optimal sealing quality for mono-material at high speeds
The extended hub length of the Amplified Heat Sealing technology allows extended sealing time, which is especially helpful for mono-material films.
Paper packaging for SMARTIES® tablets
With a retrofit for their existing machinery, we helped Nestlé UK switch to paper for their chocolate packaging.
Heat-seal paper for packaging cupcakes
Medium-speed heat-sealing application: The forming unit and sealing jaws are pre-configured for the desired pack size and material characteristics before being installed.
Paper packaging for Cadbury chocolate
Recently, Mondelēz International approached us with a challenging request: to package their Cadbury chocolate bars in recyclable paper flow wraps.
Cold-seal paper packaging for bars
High-speed cold-sealing application: The retrofit kit “paper-ON-form” for existing and new horizontal flow wrapping machines.
お問い合わせ
縦型ピロー包装機

紙包装

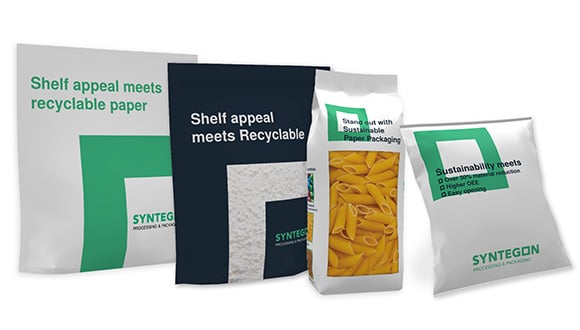

当社の縦型ピロー包装機では、紙包材でピロー袋以外にも、ガゼット袋、角底袋、コーナーシール袋、スタンディングパウチの包装形態で製袋から充填、シールまで行います。当社は様々な包装材料メーカーと協力し、お客様の製品に最適な包装形態を提案できる技術を開発してきました。シール剤の塗布量を抑えることにより、最大95%の繊維含有率を達成し、持続可能な包装形態への移行をサポートします。また、既存の機械を紙包装への転換を容易にする後付けユニットも提供しています。

モノマテリアル包装
妥協のない持続可能性:当社の包装設備は、従来のフィルムでの袋の品質と生産速度を維持しつつ、持続可能性の実現を目指します。縦型ピロー包装機では、単層フィルムを効率よく処理することにより、ピロー袋、ガゼット袋、角底袋、コーナーシール袋、ジッパー付きスタンディングパウチなどの包装形態で製袋から充填、シールまで行います。様々なフィルムメーカーと協力し、お客様の製品に適したバリア性(水蒸気透過率<1、酸素透過率<1)を維持する確実なシステムを開発してきました。新しいシーリングシステムでは、シール工程でクランプするフィルム量を最小限に抑え、フィルムの消費量を最大6.8%削減しました。
ユースケースシナリオ(英語)

Ritter Sport minis in stand-up bags
Vertical baggers produce bend- and tear-resistant stand-up bags made of paper.
Pasta in sealed paper packaging
ALB-GOLD has begun selling its pasta in paper bags, which has been a great success with customers and retailers alike.
Frozen foods in BOPE pillow bags
Combination of our PHS 2.0 sealing technology and a 20-micrometer film from BOPE.
Wolf Nudeln in paper bags
With less than 5% sealing material content, the packaging counts as mono-material and can be recycled in the paper waste stream.
Paper stand-up pouch (Doy bag)
Our cooperation with Koehler enables customers to use paper on their existing machines to produce attractive bag shapes like Doy from paper.

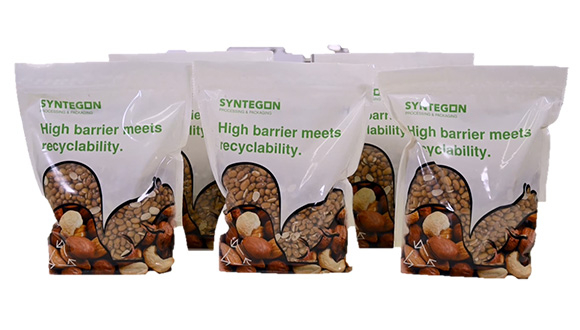

High barrier meets recyclability
New PE-based flexible stand-up pouches with high barrier qualities offer toughness, stiffness and shelf appeal at high speeds on existing VFFS production lines.
Order your free set of sustainable bag samples
In the set you will find readily available packaging solutions.紙立体成型ソリューション

紙立体成型容器

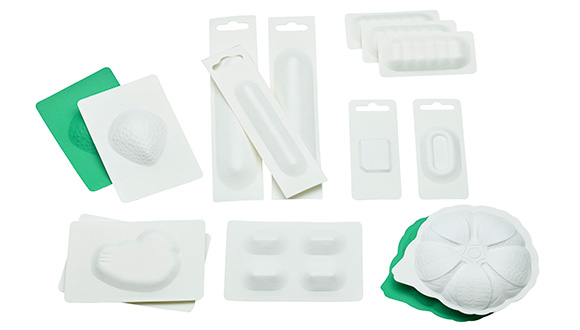

ドイツ・パッケージングアワードを受賞した当社の紙成型技術は、他製品との差別化できる人目を惹くデザインの包装容器を作ります。伸展性のある紙を使用することにより、他の包装形態とは異なる独自の3D効果を実現します。また、食品・化粧品・非食品などのエコ包装に適した繊維素材を使用したポーションパック(充填量10~100 mL)など持続可能な包装形態として展開できる幅広い可能性があります。純度の高い紙の加工に加えて、必要な製品保護機能を担保するために薄いバリア層を追加した包材にも対応も可能です。また、錠剤やカプセル剤のブリスター包装の紙化も我々の提案の一つです。

紙トレー・紙カップソリューション

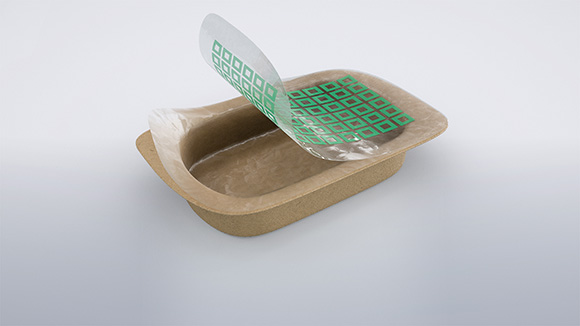

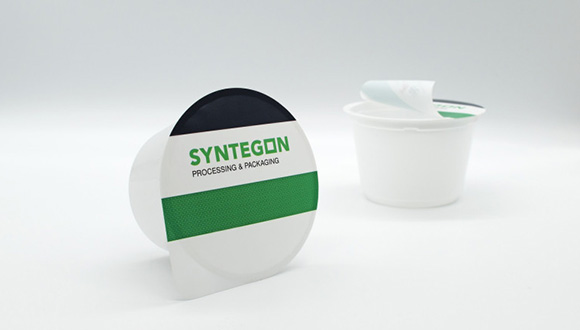

私たちは、高いバリア性を必要とする繊細な食品も、より持続可能な素材で包装することを目指しています。長いセルロース繊維によって伸縮性と耐裂性を備えた特殊な紙により、最大深さ30 mmの密封トレーやカップの形成が可能になりました。単一素材95%のリサイクル可能なバリア層が製品を最適に保護します。廃棄の観点からも環境に配慮した包装です。紙製のバリア層とカバーフィルムは簡単に分離できるため、リサイクル性が高く、プラスチック含有量を低減することが可能です。
ユースケースシナリオ(英語)

Blister meets paper
We won the German Packaging Award for our sustainable tablet and capsule packaging.
Sustainably packaging cosmetics in paper
Embossed structural pods can be individually shaped to manufacturers’ requirements and are made almost entirely of paper.
Batteries, toothbrushes, cosmetics and household items packaged in paper
Our cooperation with contract packer Truvant allows customers to quickly implement sustainable packaging solutions.
Paper packaging for sensitive products with high barrier properties
Sealed trays and cups made of particularly stretchable and tearproof long-cellulose-fiber paper.
What if paper pods could shape the future?
Using stretchable paper creates unique 3D effects for unique brand experiences.カートン包装ソリューション

カートン

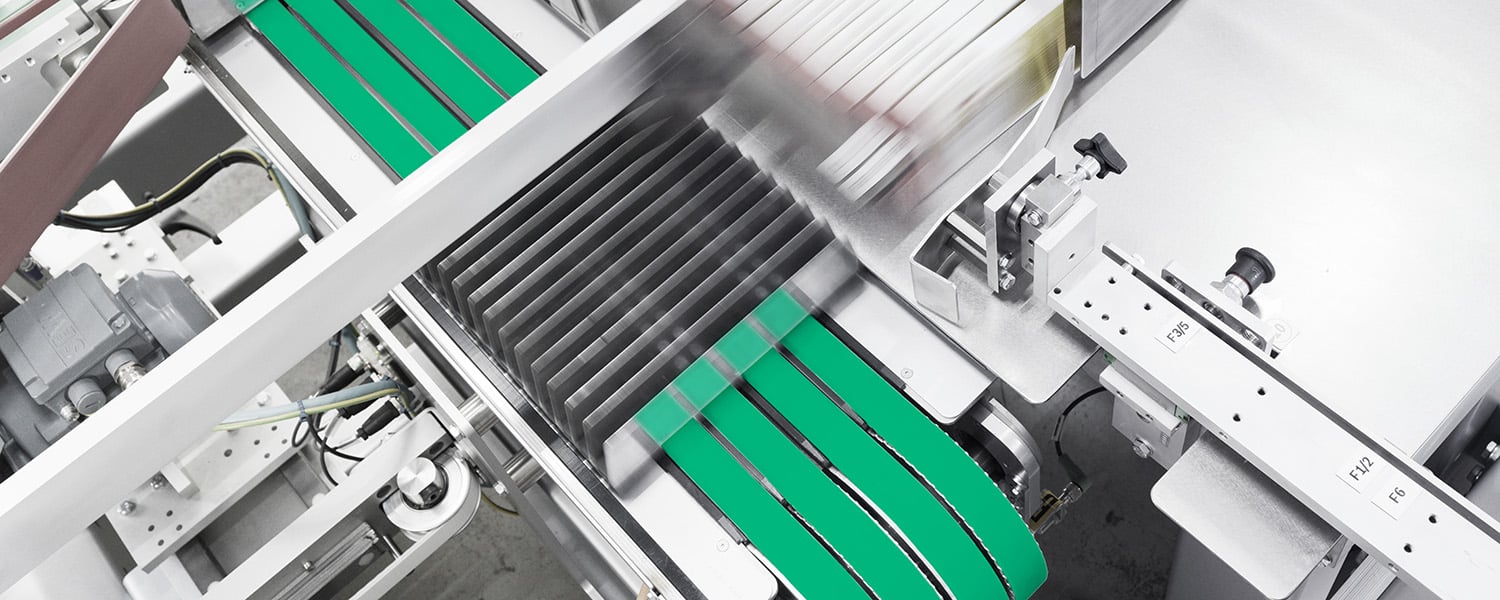

当社ではトップロード/エンドロード/ラップアラウンドカートナーの総合的なラインアップから、効率性に優れたカートニング設備を提供します。私たちの目標は、性能の最大化と廃棄物の最少化です。不良品を出さないことはコスト削減に貢献するだけでなく、環境にも良い影響を与えます。超音波シールのほか、最新のロックスタイル技術などの接着剤を使用しない技術を採用し、接着剤不使用でカートン成形を行います。これらの技術により、クッキーの包装ではプラスチックトレーから紙トレーへの移行がすでに実現しています。これらのソリューションはお客様の二次包装工程に持続可能な選択肢を提供します。

ケース
持続可能性の理念に従い、当社のケーサーではグラスファイバーなどの再生可能素材から作られた段ボールの加工が可能です。さらに、お客様の廃棄物や総コストを削減する包装形態の開発にも取り組んでいます。当社のケース包装機は、曲がったブランク包材を処理する能力など、包装材料を効率的に使用できる点で定評があります。シンプルなトレーからフード付きトレーまで、柔軟性に優れたケーサーを提供します。
ユースケースシナリオ(英語)

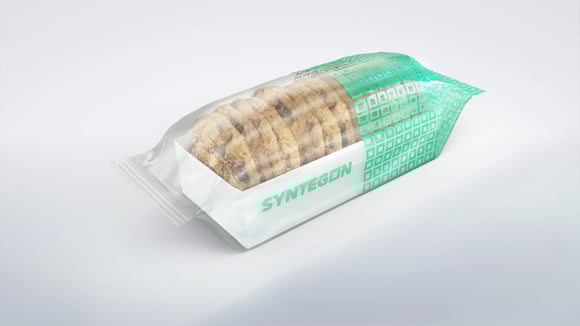

Replacing plastic with paper trays?
Take a closer look at trays made from paper, which can replace commonly used plastic trays for cookies.

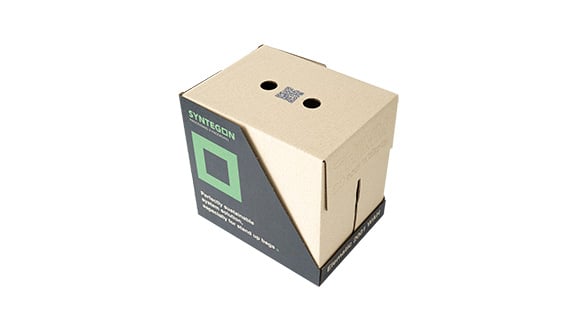

Cases made of grass fiber
Take a look at our case packer combined with a vertical bagger producing paper stand-up bags.
Sustainable carton packaging solutions
Customers can choose between glue, lock-style or innovative ultrasonic sealing technology.
Kliklok ACE – glue-free cartoning solutions
Thanks to our lock-style technology we can form cartons in a completely glue-free, environmentally friendly manner.
お問い合わせ
資料ダウンロード(英語)

Whitepaper: Practical advice on selecting the right material
Comparison of production processes and recyclability of sustainable packaging materials.

Whitepaper: Preserving coffee aroma while protecting the environment
A guide to understanding and promoting the use of mono-material films in vacuum coffee packaging.

Whitepaper: Sustainable packaging for frozen foods
Industry insights into the ongoing efforts to make frozen food packaging and vertical bagging equipment more sustainable.

Whitepaper: Sustainable packaging for nutraceuticals
Learn about our sustainable paper blister solution, including easy push-through removal for tablets and capsules.
